Model Specifications

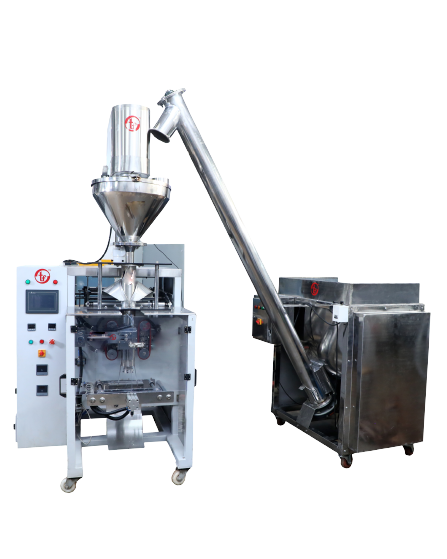

Spices Packing Machine - MODEL Torq 250ii A
FEATURES- ACCURATE FILLING AND DOSING
| PACKING MATERIAL | LAMINATED FILM ROLL 2/3/4 LAYER |
| PACKING RANGE | 10 GM TO 1000 GM |
| MACHINE SPEED | 60 PPM |
| MAX ROLL WIDTH | 450 MM |
| MAX ROLL DIAMETER | 450MM |
| MAXIMUM POUCH LENGTH | 290MM |
| FILM DRAW MECHANISM | SERVO/ GEARED MOTOR |
| HORIZONTAL AND VERTICAL SEAL | PNEUMATIC |
| AUGER FILLER | SERVO 1.5 TO 2 KW |
| TYPES OF SEALING | CENTRAL SEAL |
| POWER CONSUMPTION | 8KW, 3 PHASE |
| AIR CONSUMPTION | 6 CFM@ 7 KG/ SQ CM |
| MACHINE DIMENSION | 1500 LX1100 WX3000 H(MM) |
| MACHINE WEIGHT | 1000KGS |
| MACHINE STRUCTURE | MS POWDER COATED |
| CONTACT PARTS | SS-304/SS-316 ( FOOD GRADE) |
| OPTIONAL ATTACHMENTS | FILLING ACCURACY |
|---|---|
| HOT INK CODING / PINNING/SIDE GUSSETING |
FILLING ACCURACY < 1%
LAMINATE REJECTION < 1% |
EFFICIENT- ACCURATE PACKAGING MATERIALS /APPLICATIONS
- 1. FLOUR (WHEAT & GRAMS)
- 2. SPICES ( GROUND SPICES)
- 3. MAIDA
- 4. MILK POWDER
- 5. NUTRIENT POWDER (PHARMA-PRODUCTS)
- 6. INSTANT MIXES
- 7. PESTICIDES
